55W UVC Germicidal Replace Lamps T5 1148mm 2-Pins Replacement UV Lamp
Tidro UV offer a superb line of UVC emitting compact germicidal lamps for applications in small spaces. These lamps are consistently a favorite product among our clients.
Description
Our company has high quality, experienced high, intermediate technology development, production and operation management personnel, specializing in the development of high quality and low price Ultraviolet Water Purifier, UV Germicidal Lamps 2G11, Germicidal UV Tube Ballast. We strictly follow the principle of system reliability and system flexibility, fully combine the process requirements and characteristics, and wholeheartedly provide technical support for customers. We introduce advanced technology at home and abroad, adhere to sustainable development, and ensure the dominant position of our products. Our service objectives are unified image, clear standards, standardized content, simple process and sound network.


Tidro UV offer a superb line of UVC emitting compact germicidal lamps for applications in small spaces. These lamps are consistently a favorite product among our clients.

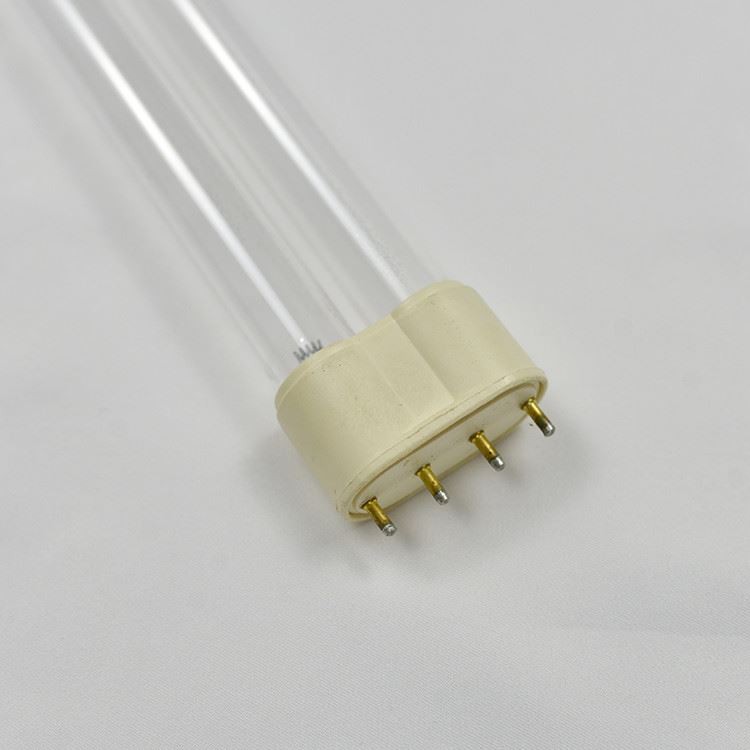

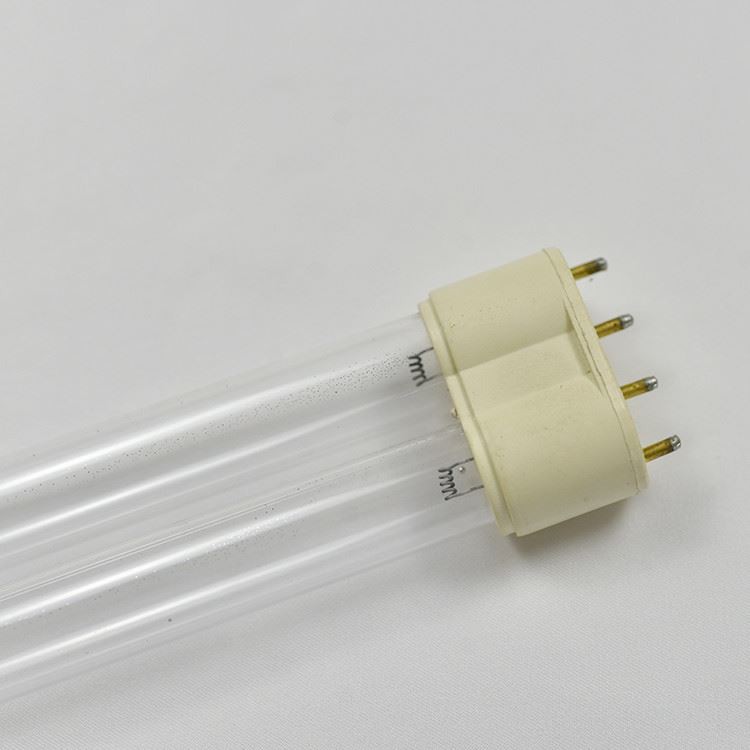

Low Pressure Compact lamp
Compact lamps are available in a specially engineered two-tube linear innovative design, which allows a very uniform output. We provide all standard lamp sizes as well as custom configurations.
The high efficiency of a compact lamp is created by leaving a small dead space at the end of each of the two parallel tubes. Because this area is not part of the path followed by the discharge (farther away from the center of the discharge column) the wall temperature is lower than anywhere else creating a dedicated mercury cold spot.
These compact designs are available in quartz glass for both 254nm and 185nm technology. Tidro also offer compact lamp designs using pellet amalgam Technology. Providing outstanding UVC efficiency, it is one of the best value solutions available in today’s market.

U Shape UV germicidal lamp | ||
| Model NO. | GU22-220T5VH |
Overall Length | 220MM | |
Watt | 45W | |
Diameter | 15MM | |
Ultraviolet intensity at 1 meter | 120uw/cm2 | |
13W | ||
Current | 425mA | |
Liftime | 9000 hrs | |
Type | Type | Power | Diameter | Length (BF-BF) | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GU22-220T5L | GU22-220T5VH | 45 | 15 | 220 | 425 | 70 | 120 | 9000 |
GU22-320T5L | GU22-320T5VH | 100 | 15 | 600 | 800 | 135 | 290 | 9000 |
GU22-415T5L | GU22-415T5VH | 120 | 15 | 700 | 800 | 140 | 320 | 9000 |
GU22-810T5L | GU22-810T5VH | 150 | 15 | 810 | 800 | 210 | 380 | 9000 |
GPX5/G23 | GPX5VH/G23 | 5 | 12 | 85 | 180 | 34 | 12 | 9000 |
GPX7/2G7 | GPX7VH/2G7 | 7 | 12 | 115 | 175 | 47 | 20 | 9000 |
GPX9/G23 | GPX9VH/G23 | 9 | 12 | 145 | 170 | 60 | 23 | 9000 |
GPX11/G23 | GPX11VH/G23 | 11 | 12 | 214 | 160 | 89 | 33 | 9000 |
GPX13/2G7 | GPX13VH2G7 | 13 | 12 | 165 | 290 | 60 | 31 | 9000 |
GPL18K/2G11 | GPL18VH/2G11 | 18 | 17 | 217 | 370 | 60 | 60 | 9000 |
GPL24K/2G11 | GPL24VH/2G11 | 24 | 17 | 317 | 350 | 87 | 90 | 9000 |
GPL35K/2G11 | GPL35VH/2G11 | 35 | 17 | 217 | 850 | 40 | 105 | 9000 |
GPL36K/2G11 | GPL36VH/2G11 | 36 | 17 | 410 | 440 | 105 | 120 | 9000 |
GPL55K/2G11 | GPL55VH/2G11 | 55 | 17 | 530 | 540 | 103 | 170 | 9000 |
GPL60K/2G11 | GPL60VH/2G11 | 60 | 17 | 410 | 670 | 118 | 170 | 9000 |
GPL95L | GPL95VH/2G11 | 95 | 17 | 530 | 950 | 100 | 305 | 9000 |









What is UV Air Sterilization?
Germicidal UVC technology provides a cost-effective and efficient method to disinfect and sterilize the air with no byproducts and no hazardous waste. UV radiation emitted in the UVC wavelength, specifically at 254 nm, is proven to have the most powerful germicidal effects. UVC radiation is effective at eliminating the threat from bacteria, viruses, mold spores, dust mites, fungi, and harmful airborne microorganisms in UV air sterilization systems.
UVC ozone lamps are designed to emit wavelengths closer to 185 nm, which are useful in many types of UV air treatment systems. Ozone is a proven oxidizer which offers some advantages as ozone can be carried through the air to disinfect areas that direct UV radiation cannot reach. UVC ozone lamps remove foul odors from the air as well as eliminating volatile organic compounds (VOCs) such as ammonia, mercaptans and sulfides.
UVC germicidal lamps eliminate airborne viruses and bacteria by penetrating the DNA of these harmful microorganisms and rendering them unable to replicate. When these cells can no longer reproduce, they are considered harmless with the threat of infection eliminated.
We will continue to create high-quality products for industry users under the guidance of our business philosophy, make unremitting efforts for the development of 55W UVC Germicidal Replace Lamps T5 1148mm 2-Pins Replacement UV Lamp industry, and continue to strive to help customers achieve more profits. We sincerely expect customers come for a blooming business for both of us. We are committed to establishing a scientific and fair employee assessment and value evaluation system, an employee education and training system, and a reasonable salary and welfare system.
Hot Tags: disinfection lamps low pressure lamp, China, suppliers, manufacturers, factory, customized, wholesale, buy, price, Replacement Lamp, UVC Ho Replacement Lamp, 2 Pin UV Lamp, 190W UVC Amalgam Light, 28mm Single Open UVC Quartz Sleeve, U Lamp
