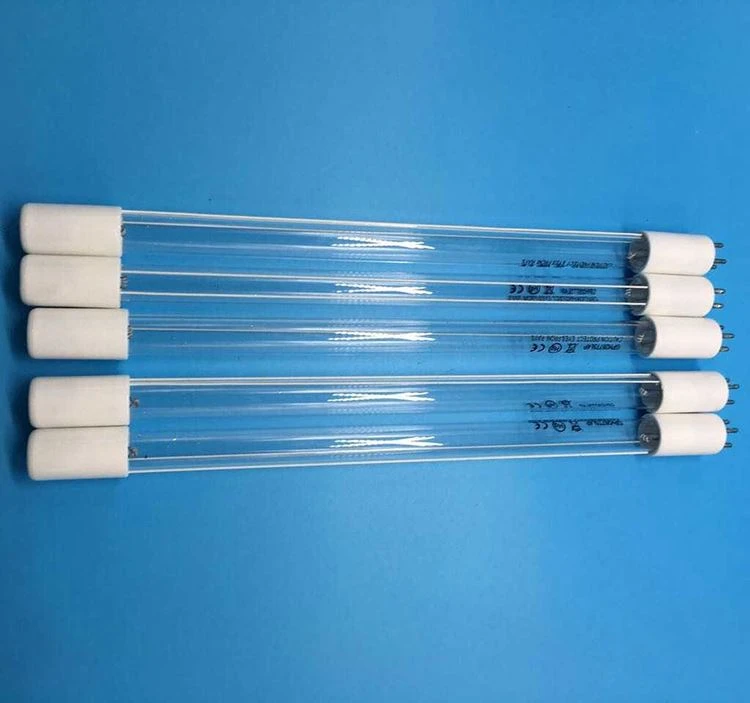

40W GPH810T5L/4P Quartz UV Lamp
What is ultraviolet? Ultraviolet light is part of the light spectrum, which is classified into three wavelength ranges: UV-C, from 100 nanometers (nm) to 280 nm UV-B, from 280 nm to 315 nm UV-A, from 315 nm to 400 nm this lamp is an equivalent replacement lamp for the following: High Output What...
Description
What is ultraviolet?
Ultraviolet light is part of the light spectrum, which is classified into three wavelength ranges:
UV-C, from 100 nanometers (nm) to 280 nm
UV-B, from 280 nm to 315 nm
UV-A, from 315 nm to 400 nm
40W GPH810T5L/4P Quartz UV Lamp | ||
 | Model NO. | GPH810T5L |
Overall Length | 810MM | |
Watt | 40W | |
Diameter | 15MM | |
Ultraviolet intensity at 1 meter | 130uw/cm2 | |
| 15W | ||
Current | 425mA | |
Liftime | 9000 hrs | |
this lamp is an equivalent replacement lamp for the following:
Brand | Model |
American Water Service | PT20 |
AquaPro Industrial | APUV-12 |
Aqua-Pure Water Conditioning | APUV-12, UVLB-1X |
Aqua Treatment Services, Inc. | ATS4-810, EV-20E, GDS-20, PFC-20 |
Biolite | BIO12, UVLB-1X |
Cuno | APUV-12, UV12, UVLB-1X |
CureUV | 192049 |
Evoqua Water Technologies | W2T843832 |
Glasco UV | GS4305L |
Ideal Horizons | 42012, LMP42012, ME-20, ME-30, ME-45, ME-60, ME38K-14, ME38K-20, ME38K-30, ME38K-40, MWE-20, MWE-30, MWE-45, MWE-60, MWE38K-14, MWE38K-20, MWE38K-30, MWE38K-40 |
Master Water Conditioning Corporation | HIMSV-20, MWC-E20 |
Neptune | 05-0319-1, 5000, 5020, 5030, Tri-20, WTA-15, WTA4-810 |
Pristine Water Systems | PM-12, PM-15, PM-20 |
Pura Water Products, LLC | 8751, 8754, 89501, UVSS-10, UVSS-10M |
PurTest | P20-4-854, PT-20, PT-204-854, PURPG20 |
Safe Water Technologies | BetterLife System 1, BL1L-100, BL1L-175, BL2L-100, BL2L-175, BL3L-175, IL10001 |
Siemens / Sunlight | LP4305 |
UV Superstore | GL810/4 |
Water Master | W15E |
Water Treatment & Accessories | 05-0319-1, 05-0319-R, 5000, 5020, 5030, Tri-20, WTA-15, WTA4-810 |
Wedeco | 42012, LMP42012, ME-20, ME-30, ME-45, ME-60, ME38K-14, ME38K-20, ME38K-30, ME38K-40, MWE-20, MWE-30, MWE-45, MWE-60, MWE38K-14, MWE38K-20, MWE38K-30, MWE38K-40 |
Type | Type | Power | Diameter | Length (BF-BF) | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GPH118T5L | GPH118T5VH | 6 | 15 | 118 | 425 | 25 | 13 | 9000 |
GPH150T5L | GPH150T5VH | 8 | 15 | 150 | 425 | 27 | 20 | 9000 |
GPH212T5L | GPH212T5VH | 10 | 15 | 212 | 425 | 30 | 26 | 9000 |
GPH287T5L | GPH287T5VH | 14 | 15 | 287 | 425 | 41 | 40 | 9000 |
GPH303T5L | GPH303T5VH | 15 | 15 | 303 | 425 | 43 | 43 | 9000 |
GPH357T5L | GPH357T5VH | 17 | 15 | 357 | 425 | 51 | 57 | 9000 |
GPH436T5L | GPH436T5VH | 21 | 15 | 436 | 425 | 62 | 72 | 9000 |
GPH550T5L | GPH550T5VH | 28 | 15 | 550 | 425 | 69 | 85 | 9000 |
GPH793T5L | GPH793T5VH | 37 | 15 | 793 | 425 | 112 | 120 | 9000 |
GPH843T5L | GPH843T5VH | 40 | 15 | 843 | 425 | 120 | 135 | 9000 |
GPH1148T5L | GPH1148T5VH | 55 | 15 | 1148 | 425 | 165 | 170 | 9000 |
GPH1554T5L | GPH1554T5VH | 75 | 15 | 1554 | 425 | 220 | 220 | 9000 |
GPH1630T5L | GPH1630T5VH | 79 | 15 | 1630 | 425 | 231 | 228 | 9000 |
High Output
Type | Type | Power | Diameter | Length (BF-BF) | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GPH212T5L/HO | GPH212T5VH/HO | 18 | 15 | 212 | 800 | 23 | 50 | 9000 |
GPH287T5L/HO | GPH287T5VH/HO | 27 | 15 | 287 | 800 | 34 | 75 | 9000 |
GPH357T5L/HO | GPH357T5VH/HO | 32 | 15 | 357 | 800 | 40 | 95 | 9000 |
GPH436T5L/HO | GPH436T5VH/HO | 48 | 15 | 436 | 800 | 70 | 120 | 9000 |
GPH793T5L/HO | GPH793T5VH/HO | 72 | 15 | 793 | 800 | 90 | 210 | 9000 |
GHO36T5L | GHO36T5VH | 80 | 15 | 843 | 800 | 127 | 260 | 9000 |
GPH893T5L/HO | GPH893T5VH/HO | 90 | 15 | 893 | 800 | 135 | 270 | 9000 |
GHO64T5L | GHO64T5VH | 150 | 15 | 1554 | 800 | 220 | 400 | 9000 |
GPH846T6L/HO | GPS846T6VH/HO | 80 | 19 | 843 | 1000 | 130 | 280 | 9000 |
GPH1148T6L/HO | GPH1148T6VH/HO | 120 | 19 | 1148 | 1000 | 185 | 340 | 9000 |
GPH1554T6L/HO | GPH1554T6VH/HO | 150 | 19 | 1554 | 1000 | 230 | 400 | 9000 |
What are the beneficial uses of germicidal ultraviolet?
Ultraviolet technology is a non-chemical approach to disinfection. In this method of disinfection, nothing is added which makes this process simple, inexpensive and requires very low maintenance. Ultraviolet purifiers utilize germicidal lamps that are designed and calculated to produce a certain dosage of ultraviolet (usually at least 16,000 microwatt seconds per square centimeter but many units actually have a much higher dosage.) The principle of design is based on a product of time and intensity – you must have a certain amount of both for a successful design.
