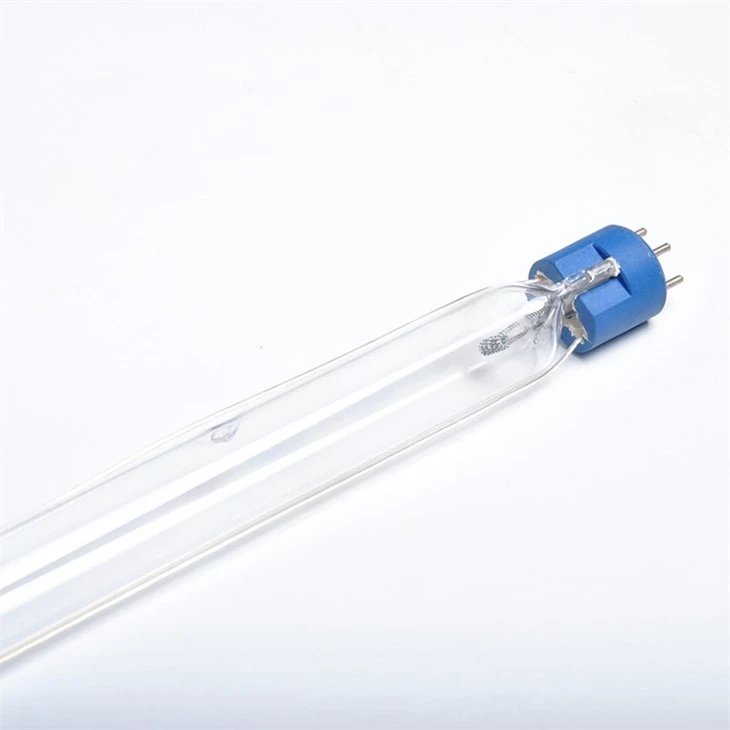

UV Germicidal Bule for Water Treatment
Amalgam lamps offer the best performance over a wide range of air and water temperatures (4-40 ºC), and can be customized for higher temperature applications, including ozone and ozone free, according to customer requirements.
Description
Amalgam lamps offer the best performance over a wide range of air and water temperatures (4-40 ºC), and can be customized for higher temperature applications, including ozone and ozone free, according to customer requirements. If amalgam lamp can replace standard germicidal lamp or high output germicidal lamp, the number of lamp tubes can be reduced without affecting its sterilization efficiency, thus greatly reducing the cost of initial installation and life-long maintenance.
4 PIN Single End UV Amalgam Lamp | ||
| Model NO. | GPHHA1554T10L |
Overall Length | 1554MM | |
Watt | 500W | |
Diameter | 32MM | |
Ultraviolet intensity at 1 meter | 1300uw/cm2 | |
160W | ||
Current | 5A | |
Liftime | 13000 hrs | |
Type | Type | Power | Diameter | Length (BF-BF) | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GPHA357T5L | GPHA357T5VH | 42 | 15 | 357 | 1.2 | 36 | 110 | 13000 |
GPHA843T5L | GPHA843T5VH | 105 | 15 | 843 | 1.2 | 88 | 320 | 13000 |
GPHA1000T5L | GPHA1000T5VH | 127 | 15 | 1000 | 1.2 | 107 | 370 | 13000 |
GPHA1554T5L | GPHA1554T5VH | 190 | 15 | 1554 | 1.2 | 164 | 500 | 13000 |
GPHA357T6L | GPHA357T6VH | 57 | 19 | 357 | 1.8 | 32 | 130 | 13000 |
GPHA843T6L | GPHA843T6VH | 130 | 19 | 843 | 1.8 | 71 | 400 | 13000 |
GPHA1000T6L | GPHA1000T6VH | 150 | 19 | 1000 | 1.8 | 84 | 460 | 13000 |
GPHA1554T6L | GPHA1554T6VH | 240 | 19 | 1554 | 1.8 | 134 | 600 | 13000 |
GPHHA357T6L | GPHHA357T6VH | 65 | 19 | 357 | 2.1 | 32 | 140 | 13000 |
GPHHA843T6L | GPHHA843T6VH | 172 | 19 | 843 | 2.1 | 82 | 490 | 13000 |
GPHHA1000T6L | GPHHA1000T6VH | 207 | 19 | 1000 | 2.1 | 99 | 570 | 13000 |
GPHHA1554T6L | GPHHA1554T6VH | 320 | 19 | 1554 | 2.1 | 154 | 750 | 13000 |
GPHHA1510T8L | GPHHA1510T8VH | 250 | 25 | 1510 | 3.1 | 83 | 650 | 13000 |
GXA1500T10L | GXA1500T10VH | 270 | 32 | 1500 | 3.8 | 75 | 650 | 13000 |
GPHHA1310T10L | GPHHA1310T10VH | 400 | 32 | 1310 | 5.0 | 82 | 1050 | 13000 |
GPHHA1554T10L | GPHHA1554T10VH | 470 | 32 | 1554 | 5.0 | 95 | 1160 | 13000 |
GPHHA1554T10L | GPHHA1554T10VH | 500 | 32 | 1554 | 5.5 | 90 | 1300 | 13000 |
