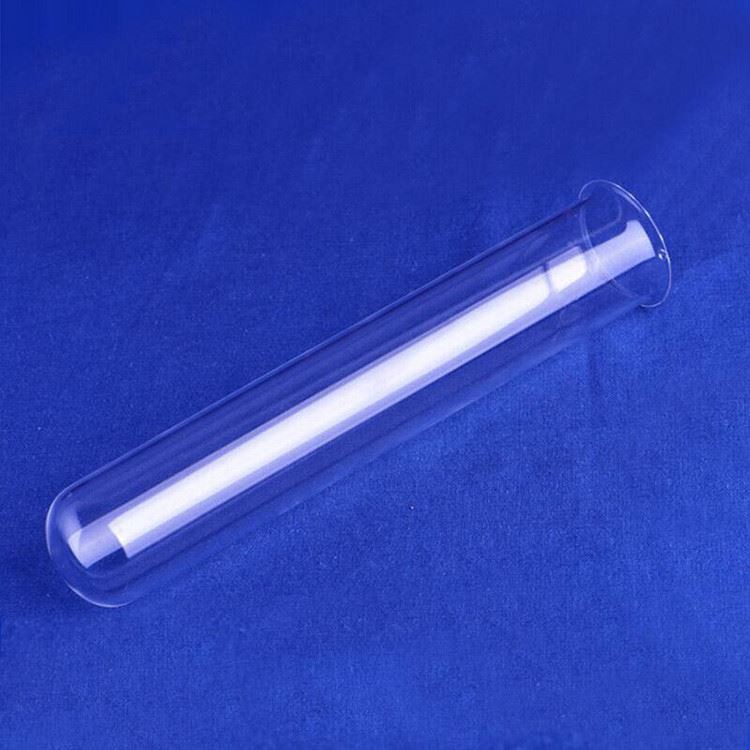

25mm Single Open UV Quartz Sleeve
High temperature resistance glass can work under 1200°C continuously, and in short time can even work under 1450°C, its softening point is 1650°C, and the melting point is 1650-1800°C.
Description
| OD23MM Quartz sleeve One End Closed Quartz Tube | ||
| Product Name | Quartz Glass/ Silica Glass |
Brand Name: | OEM | |
Diameter: | OD 23mm ID20mm | |
Material: | Quartz Glass | |
Temperature Resistance: | 1100℃-1200℃ | |
Thickness: | 1.5mm, 2mm | |
Moh''s Hardness: | 7 | |
Original Country: | China | |
Lead Time : | 1-3 weeks after receive deposit | |
Outside Diameter | Thickness | Inside Diameter |
mm | mm | mm |
20.5 | 1 | 18.5 |
22.5 | 1.25 | 19.5 |
23 | 1.5 | 20 |
25 | 1.5 | 22 |
28 | 1.5 | 28 |
30 | 1.5 | 27 |
36 | 2 | 32 |
38 | 1.5 | 35 |
42 | 2 | 38 |
45 | 2 | 41 |
48 | 2 | 44 |
High Purity Quartz Glass Tube
1. High temperature resistance glass can work under 1200°C continuously, and in short time can even work under 1450°C, its softening point is 1650°C, and the melting point is 1650-1800°C.
2. Corrosion resistant, Except hydrofluoric acid, quartz tube do not react with any acid and base except hydrofluoric acid the stability is 30 times of the ceramic, and 150 times of stainless steel.
3. Excellent thermal shock stability.
4. High transmission to 90%.
5. Electric insulation, it is 10000 times of usual glass.
