UV Surface Treatment Lamp

​Tidro offer high-quality standard germicidal 254 nm UV lamps in both ozone free and ozone generating solutions. The type of fused quartz used to make the body of the germicidal lamp determines the emission of the wavelength in UV 254 nm energy.

Description

Tidro offer high-quality standard germicidal 254 nm UV lamps in both ozone free and ozone generating solutions. The type of fused quartz used to make the body of the germicidal lamp determines the emission of the wavelength in UV 254 nm energy. Light is broken into colors and measured by wavelength in nanometers with UV light in the range of 254nm proven to eliminate bacteria, viruses and harmful contaminants. 254nm UV light is highly effective in sterilization and purification applications used to disinfect air, water and surfaces.

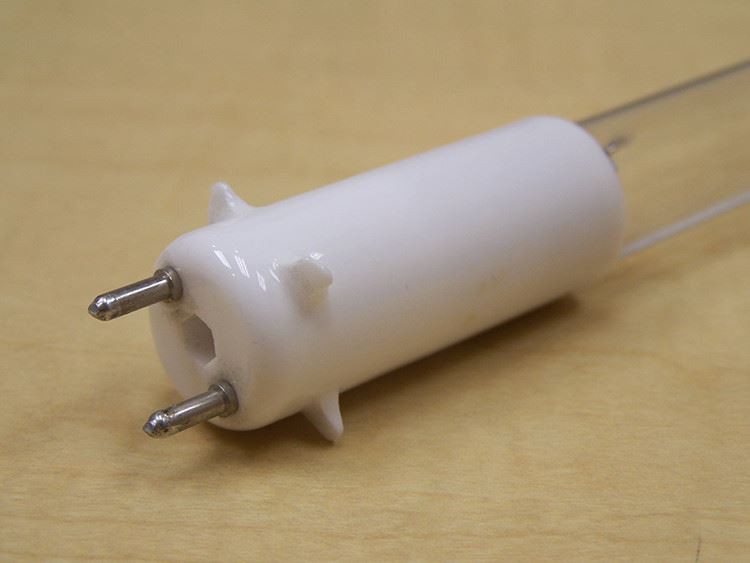

2 PIN Single End For UV germicidal lamp


Model NO.

GPH436T5L/2P

Overall Length

436MM

Watt

21W

Diameter

15MM

Ultraviolet intensity at 1 meter

72uw/cm2

7.3W

Current

425mA

Liftime

9000 hrs

Type

Type

Power

Diameter

Length

(BF-BF)

Current

Voltage

UVC Output

Life time

Ozone Free

Ozone

W

mm

mm

A

V

μw/cm²

H

GPH212T5L/2P

GPH212T5VH/2P

10

15

212

425

30

26

9000

GPH287T5L/2P

GPH287T5VH/2P

14

15

287

425

41

40

9000

GPH303T5L/2P

GPH303T5VH/2P

15

15

303

425

43

43

9000

GPH357T5L/2P

GPH357T5VH/2P

17

15

357

425

51

57

9000

GPH436T5L/2P

GPH436T5VH/2P

21

15

436

425

62

72

9000

GPH550T5L/2P

GPH550T5VH/2P

28

15

550

425

69

85

9000

GPH793T5L/2P

GPH793T5VH/2P

37

15

793

425

112

120

9000

GPH843T5L/2P

GPH843T5VH/2P

40

15

843

425

120

135

9000

GPH1148T5L/2P

GPH1148T5VH/2P

55

15

1148

425

165

170

9000

GPH1554T5L/2P

GPH1554T5VH/2P

75

15

1554

425

220

220

9000

GPH1630T5L/2P

GPH1630T5VH/2P

79

15

1630

425

231

228

9000

What is 254 nm UV Lamps?

Tidro low-pressure, mercury-arc germicidal 254 nm UV lamps are specially designed to produce the highest amounts of UV radiation – where 90% of the energy is typically generated at 254nm. This radiation is very close to the peak of the germicidal effectiveness curve of 265nm, the most lethal wavelength to microorganisms. UV 254 nm light is proven to destroy bacteria and viruses by altering the DNA of the cells harmful contaminants, even microorganisms naked to the human eye. (see graph).

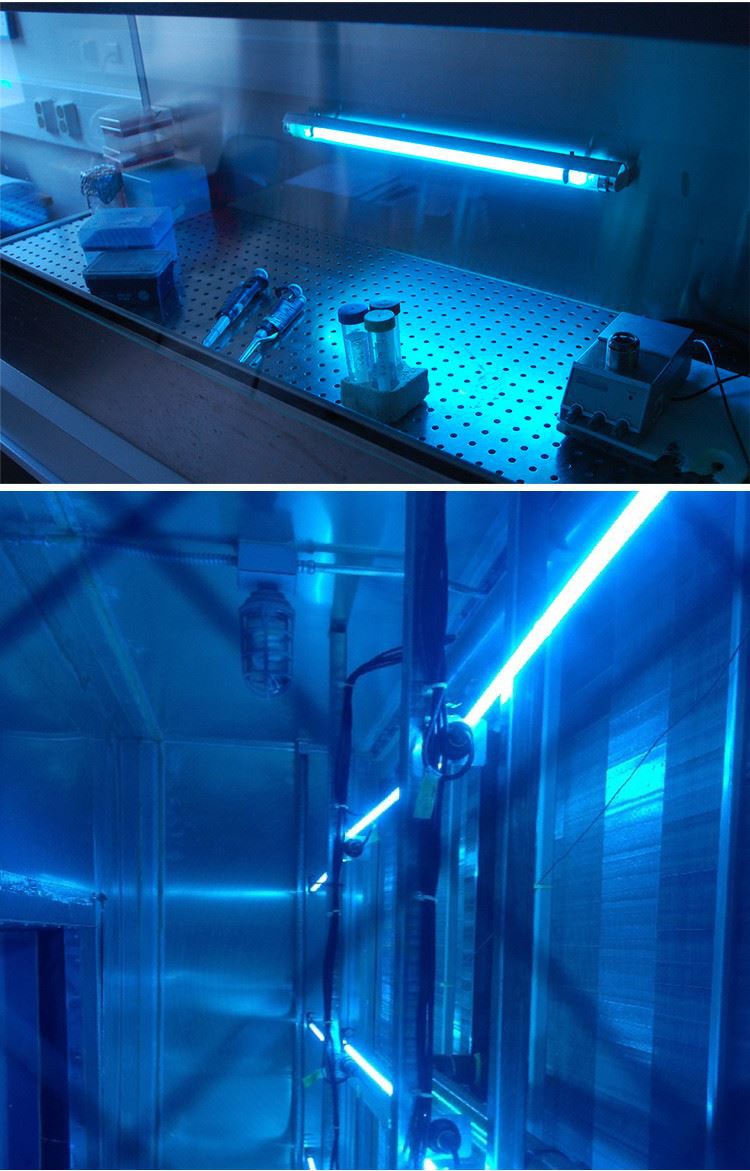

Our 254nm germicidal lamps are used extensively in the air and water purification markets and have been utilized in applications such as food and beverage, medical, HVAC (Heating, Ventilation and Air Conditioning), pharmaceutical, the semiconductor sterilization industries and many others. Our germicidal lamps are essential components in many municipal drinking water facilities, waste water and ground water remediation industries.
