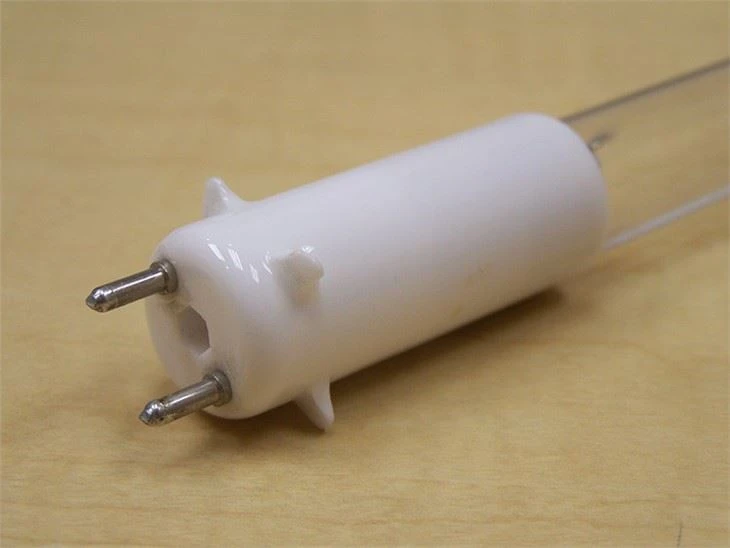

![100_9498[1]](/uploads/202134983/2-pin-uv-lamp-with-ozone-185nm23124212184.jpg)
2 Pin UV Lamp with Ozone 185nm
For hot cathode quartz UV lamp, include preheat start uv lamp, instant uv lamp, high output uv lamp, ozone and free ozone uv lamp, high ozone uv lamp and compact uv lamp etc. And Tidro could do many types shapes, like straight tube uv lamp,U shape uv lamp.
Description
For hot cathode quartz UV lamp, include preheat start uv lamp, instant uv lamp, high output uv lamp, ozone and free ozone uv lamp, high ozone uv lamp and compact uv lamp etc. And Tidro could do many types shapes, like straight tube uv lamp,U shape uv lamp. In the hot cathode arc discharge, cathode current depend mainly on cathode surface coating electronic powder of thermionic emission provided, current, reach 600 ~ 700 ma. Cathode is hot, hence the name "hot cathode". And mainly use for air purify, water treatment system, water purify, and disinfect etc.
2 PIN Single End For UV germicidal lamp | ||
| Model NO. | GPH793T5L/2P |
Overall Length | 793MM | |
Watt | 38W | |
Diameter | 15MM | |
Ultraviolet intensity at 1 meter | 125uw/cm2 | |
13.5W | ||
Current | 425mA | |
Liftime | 9000 hrs | |
Type | Type | Power | Diameter | Length (BF-BF) | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GPH212T5L/2P | GPH212T5VH/2P | 10 | 15 | 212 | 425 | 30 | 26 | 9000 |
GPH287T5L/2P | GPH287T5VH/2P | 14 | 15 | 287 | 425 | 41 | 40 | 9000 |
GPH303T5L/2P | GPH303T5VH/2P | 15 | 15 | 303 | 425 | 43 | 43 | 9000 |
GPH357T5L/2P | GPH357T5VH/2P | 17 | 15 | 357 | 425 | 51 | 57 | 9000 |
GPH436T5L/2P | GPH436T5VH/2P | 21 | 15 | 436 | 425 | 62 | 72 | 9000 |
GPH550T5L/2P | GPH550T5VH/2P | 28 | 15 | 550 | 425 | 69 | 85 | 9000 |
GPH793T5L/2P | GPH793T5VH/2P | 37 | 15 | 793 | 425 | 112 | 120 | 9000 |
GPH843T5L/2P | GPH843T5VH/2P | 40 | 15 | 843 | 425 | 120 | 135 | 9000 |
GPH1148T5L/2P | GPH1148T5VH/2P | 55 | 15 | 1148 | 425 | 165 | 170 | 9000 |
GPH1554T5L/2P | GPH1554T5VH/2P | 75 | 15 | 1554 | 425 | 220 | 220 | 9000 |
GPH1630T5L/2P | GPH1630T5VH/2P | 79 | 15 | 1630 | 425 | 231 | 228 | 9000 |
What is 185 nm Ozone Generating Lamps?
● "VH" (or Very High ozone producing lamps) generate energy at 185nm in addition to the 254nm wavelength.
● The UV emission at 185nm produces abundant amounts of ozone in air. Ozone is an extremely active and effective oxidizer, destroying microorganisms as well as acting as a deodorizer.
● A primary advantage of the ozone generated by our UV germicidal lamps is that it can be carried through the air into places not easily reachable by direct UV exposure.
