39W 4pin RL-820 UVC Lamp

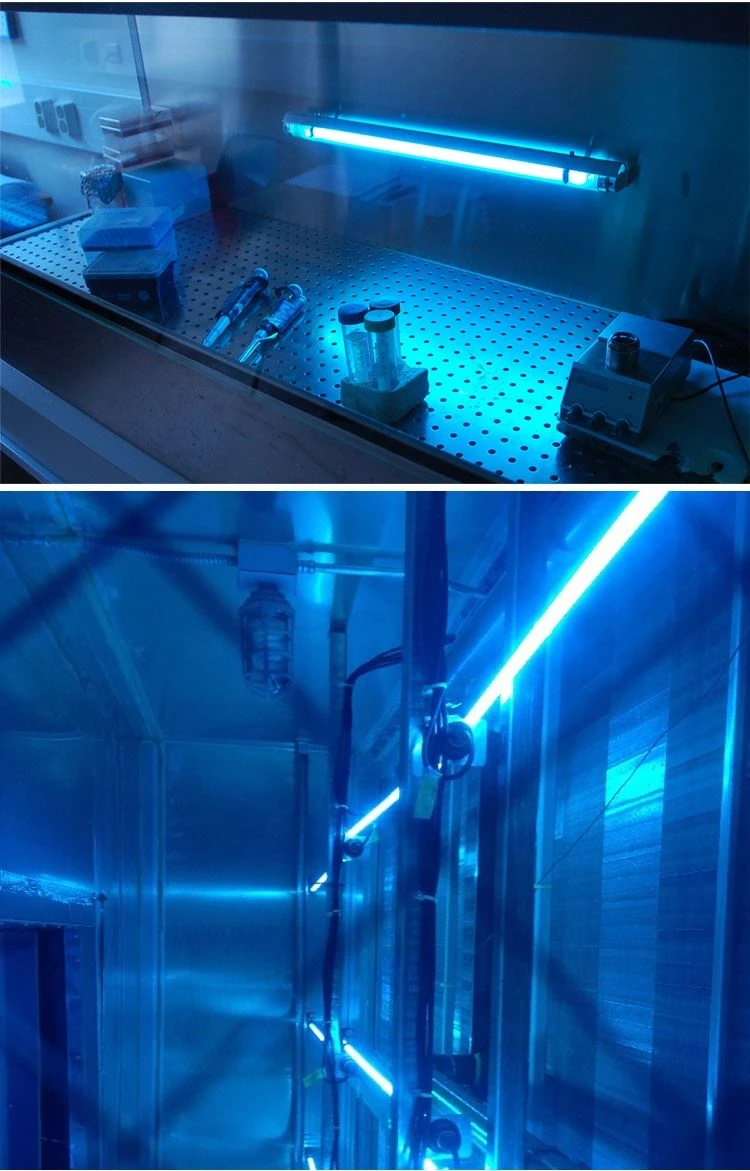

Ultraviolet germicidal light bulbs are widely used as an air, surface, and water sanitizer. UV germicidal light destroys the ability of bacteria, viruses and other pathogens to multiply by deactivating their reproductive capabilities. Germicidal light includes the UV-C portion of the ultraviolet spectrum with wavelengths between 100nm and 280nm. The target wavelength for optimal germicidal light bulb effectiveness is 253.7nm which defines the germicidal category. For water sanitation, ultraviolet germicidal lamps also emit ozone at 185nm.
Description
Germicidal UVC Light Bulbs
Ultraviolet germicidal light bulbs are widely used as an air, surface, and water sanitizer. UV germicidal light destroys the ability of bacteria, viruses and other pathogens to multiply by deactivating their reproductive capabilities. Germicidal light includes the UV-C portion of the ultraviolet spectrum with wavelengths between 100nm and 280nm. The target wavelength for optimal germicidal light bulb effectiveness is 253.7nm which defines the germicidal category. For water sanitation, ultraviolet germicidal lamps also emit ozone at 185nm.
Warning: UVGI radiation is extremely harmful to skin and eyes.
Luminor RL-820 Replacement UV Lamp | ||
| Model NO. | GPH820T5L |
Overall Length | 820MM | |
Watt | 39W | |
Diameter | 15MM | |
Ultraviolet intensity | 136uw/cm2 | |
15W | ||
Current | 425mA | |
Liftime | 9000 hrs | |
Stand Output
| Type | Type | Power | Diameter | Length | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GPH118T5L | GPH118T5VH | 6 | 15 | 118 | 425 | 25 | 13 | 9000 |
GPH150T5L | GPH150T5VH | 8 | 15 | 150 | 425 | 27 | 20 | 9000 |
GPH212T5L | GPH212T5VH | 10 | 15 | 212 | 425 | 30 | 26 | 9000 |
GPH287T5L | GPH287T5VH | 14 | 15 | 287 | 425 | 41 | 40 | 9000 |
GPH303T5L | GPH303T5VH | 15 | 15 | 303 | 425 | 43 | 43 | 9000 |
GPH357T5L | GPH357T5VH | 17 | 15 | 357 | 425 | 51 | 57 | 9000 |
GPH406T5L | GPH436T5VH | 21 | 15 | 436 | 425 | 62 | 72 | 9000 |
GPH550T5L | GPH550T5VH | 28 | 15 | 550 | 425 | 69 | 85 | 9000 |
GPH793T5L | GPH793T5VH | 37 | 15 | 793 | 425 | 112 | 120 | 9000 |
GPH843T5L | GPH843T5VH | 40 | 15 | 843 | 425 | 120 | 135 | 9000 |
GPH1148T5L | GPH1148T5VH | 55 | 15 | 1148 | 425 | 165 | 170 | 9000 |
GPH1554T5L | GPH1554T5VH | 75 | 15 | 1554 | 425 | 220 | 220 | 9000 |
GPH1630T5L | GPH1630T5VH | 79 | 15 | 1630 | 425 | 231 | 228 | 9000 |
High Output
Type | Type | Power | Diameter | Length | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GPH212T5L/HO | GPH212T5VH/HO | 18 | 15 | 212 | 800 | 23 | 50 | 9000 |
GPH287T5L/HO | GPH287T5VH/HO | 27 | 15 | 287 | 800 | 34 | 75 | 9000 |
GPH357T5L/HO | GPH357T5VH/HO | 32 | 15 | 357 | 800 | 40 | 95 | 9000 |
GPH436T5L/HO | GPH436T5VH/HO | 48 | 15 | 436 | 800 | 70 | 120 | 9000 |
GPH793T5L/HO | GPH793T5VH/HO | 72 | 15 | 793 | 800 | 90 | 210 | 9000 |
GHO36T5L | GHO36T5VH | 80 | 15 | 843 | 800 | 127 | 260 | 9000 |
GPH893T5L/HO | GPH893T5VH/HO | 90 | 15 | 893 | 800 | 135 | 270 | 9000 |
GHO64T5L | GHO64T5VH | 150 | 15 | 1554 | 800 | 220 | 400 | 9000 |
GPH846T6L/HO | GPS846T6VH/HO | 80 | 19 | 843 | 1000 | 130 | 280 | 9000 |
GPH1148T6L/HO | GPH1148T6VH/HO | 120 | 19 | 1148 | 1000 | 185 | 340 | 9000 |
GPH1554T6L/HO | GPH1554T6VH/HO | 150 | 19 | 1554 | 1000 | 230 | 400 | 9000 |
This lamp is an equivalent replacement lamp for the following:
Brand | Model |
Aqua Flo | 40040015, GEN 5-10, GEN 6-10 |
Aqua Stream | RL-820 |
Chandler Systems | UV11, UVLMP-11 |
Genesis H2O | 40040015, GEN5-10 |
Hankscraft H2O | LPUV-B11S7, LPUV-L11S7, LPUV-RL-820 |
Luminor Environmental | 140003, Blackcomb LB4-101, Blackcomb LB4-102, Blackcomb LB5-101, Blackcomb LB5-101B, Blackcomb LB5-102, Blackcomb LB6-101, Blackcomb LB6-101A, Blackcomb LB6-101B, Blackcomb LB6-102, RL-820 |
Marmon Water Foodservice | UV-6A, RL-820 |
Pura Water Products | 40040015, RL-820 |
Safeway Water | SWUV-11, RL-820 |
US Water Systems | 408-USWUV-10, 409-USWUV-LMP-10 |
Should I change the bulb after one year or when it stops lighting?
Even though the lamp produces visible light past the 10,000 hours, the ultraviolet output decreases over time. We recommend that you change the lamp every 12 months to maintain optimum efficiency. We have a Guardian Ultraviolet Monitor available that will detect reduction of ultraviolet levels due to:
● Fouling or deposits on the quartz sleeve
● Poor ultraviolet transmission through the water
● Depreciation of lamp output
● Premature lamp failure and/or component failure
