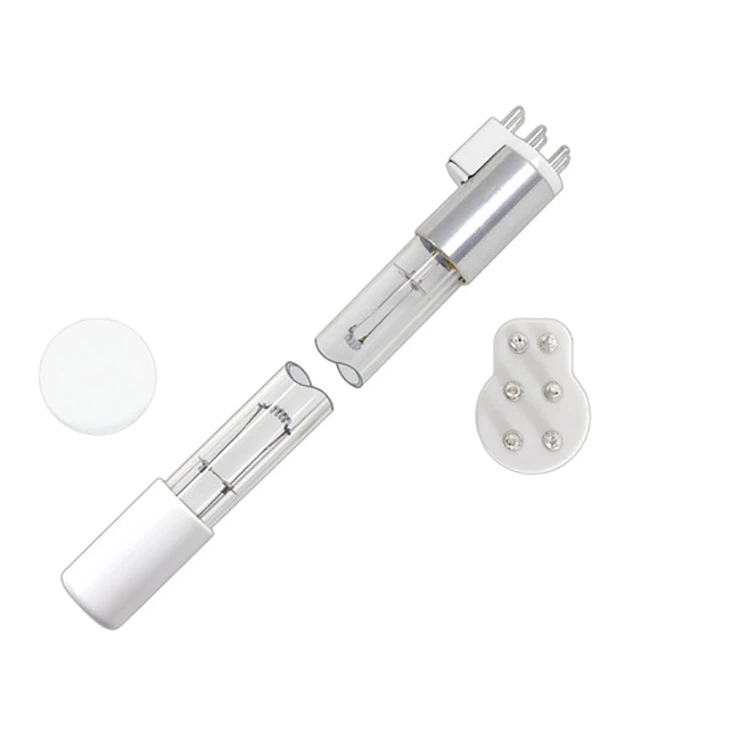

Enaqua Equivalent Replacement UV Lamp

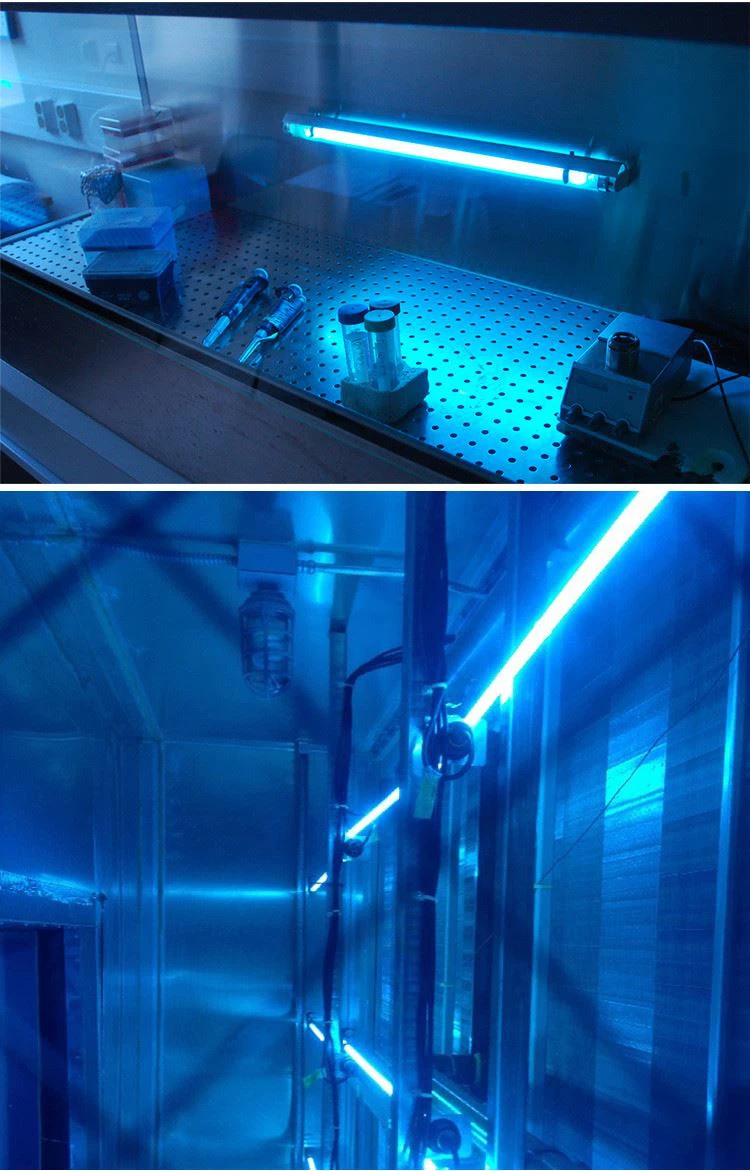

Main Application Aquarium disinfection Water treatment Air cleaning and disinfection Air conditioning pipe disinfection Purifier
Description
Enaqua Equivalent Replacement UV Lamp Function

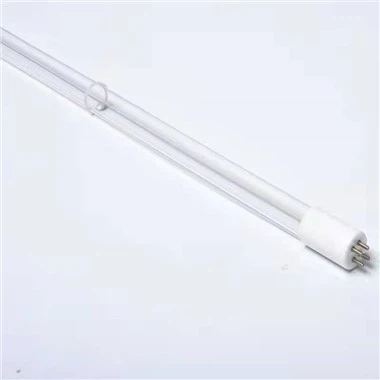

1. Four-Pin, single ended UV germicidal lamps.
2. Made of high quality quartz.
3. Average lamp life is 10,000 hours.

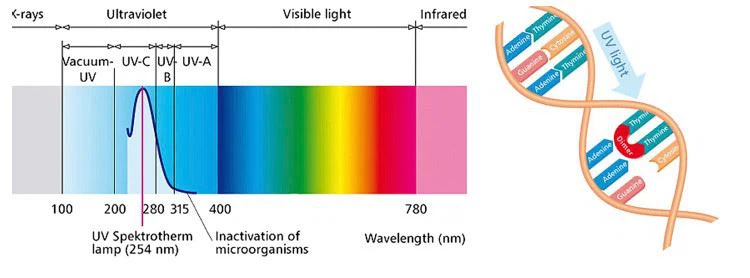

4. Ozone-free lamps (254nm) and ozone-generating lamps (185nm) are for choice.
5. Quartz sleeves and ballasts are available
Enaqua Equivalent Replacement UV Lamp | ||
 | Model NO. | GPH1554T5L |
Overall Length | 1554MM | |
Watt | 150W | |
Diameter | 15MM | |
Ultraviolet intensity at 1 meter | 380uw/cm2 | |
45W | ||
Current | 425mA | |
Liftime | 9000 hrs | |
Type | Type | Power | Diameter | Length (BF-BF) | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GPH118T5L | GPH118T5VH | 6 | 15 | 118 | 425 | 25 | 13 | 9000 |
GPH150T5L | GPH150T5VH | 8 | 15 | 150 | 425 | 27 | 20 | 9000 |
GPH212T5L | GPH212T5VH | 10 | 15 | 212 | 425 | 30 | 26 | 9000 |
GPH287T5L | GPH287T5VH | 14 | 15 | 287 | 425 | 41 | 40 | 9000 |
GPH303T5L | GPH303T5VH | 15 | 15 | 303 | 425 | 43 | 43 | 9000 |
GPH357T5L | GPH357T5VH | 17 | 15 | 357 | 425 | 51 | 57 | 9000 |
GPH406T5L | GPH436T5VH | 21 | 15 | 436 | 425 | 62 | 72 | 9000 |
GPH550T5L | GPH550T5VH | 28 | 15 | 550 | 425 | 69 | 85 | 9000 |
GPH793T5L | GPH793T5VH | 37 | 15 | 793 | 425 | 112 | 120 | 9000 |
GPH843T5L | GPH843T5VH | 40 | 15 | 843 | 425 | 120 | 135 | 9000 |
GPH1148T5L | GPH1148T5VH | 55 | 15 | 1148 | 425 | 165 | 170 | 9000 |
GPH1554T5L | GPH1554T5VH | 75 | 15 | 1554 | 425 | 220 | 220 | 9000 |
GPH1630T5L | GPH1630T5VH | 79 | 15 | 1630 | 425 | 231 | 228 | 9000 |
High Output
Type | Type | Power | Diameter | Length (BF-BF) | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GPH212T5L/HO | GPH212T5VH/HO | 18 | 15 | 212 | 800 | 23 | 50 | 9000 |
GPH287T5L/HO | GPH287T5VH/HO | 27 | 15 | 287 | 800 | 34 | 75 | 9000 |
GPH357T5L/HO | GPH357T5VH/HO | 32 | 15 | 357 | 800 | 40 | 95 | 9000 |
GPH436T5L/HO | GPH436T5VH/HO | 48 | 15 | 436 | 800 | 70 | 120 | 9000 |
GPH793T5L/HO | GPH793T5VH/HO | 72 | 15 | 793 | 800 | 90 | 210 | 9000 |
GHO36T5L | GHO36T5VH | 80 | 15 | 843 | 800 | 127 | 260 | 9000 |
GPH893T5L/HO | GPH893T5VH/HO | 90 | 15 | 893 | 800 | 135 | 270 | 9000 |
GHO64T5L | GHO64T5VH | 150 | 15 | 1554 | 800 | 220 | 400 | 9000 |
GPH846T6L/HO | GPS846T6VH/HO | 80 | 19 | 843 | 1000 | 130 | 280 | 9000 |
GPH1148T6L/HO | GPH1148T6VH/HO | 120 | 19 | 1148 | 1000 | 185 | 340 | 9000 |
GPH1554T6L/HO | GPH1554T6VH/HO | 150 | 19 | 1554 | 1000 | 230 | 400 | 9000 |
This lamp is an equivalent replacement lamp for the following:
Brand | Model |
Enaqua | 001-0617045, 001.0617045c, 001.0617SLM, 60SL, 6P, M4, M5, UVL:XUV |
+ Can ultraviolet water purifiers be used in a cooling tower application?
Ultraviolet disinfection is used in water towers to improve the overall water quality profile while at the same time reducing the demand (usage) of treatment chemicals. We recommend that you treat a minimum side stream of 10% of the total circulatory flow (with 20 – 25% being preferable). Be sure to specify "dual" wavelength germicidal lamps for this application as they provide photochemical treatment as well as biological disinfection.
