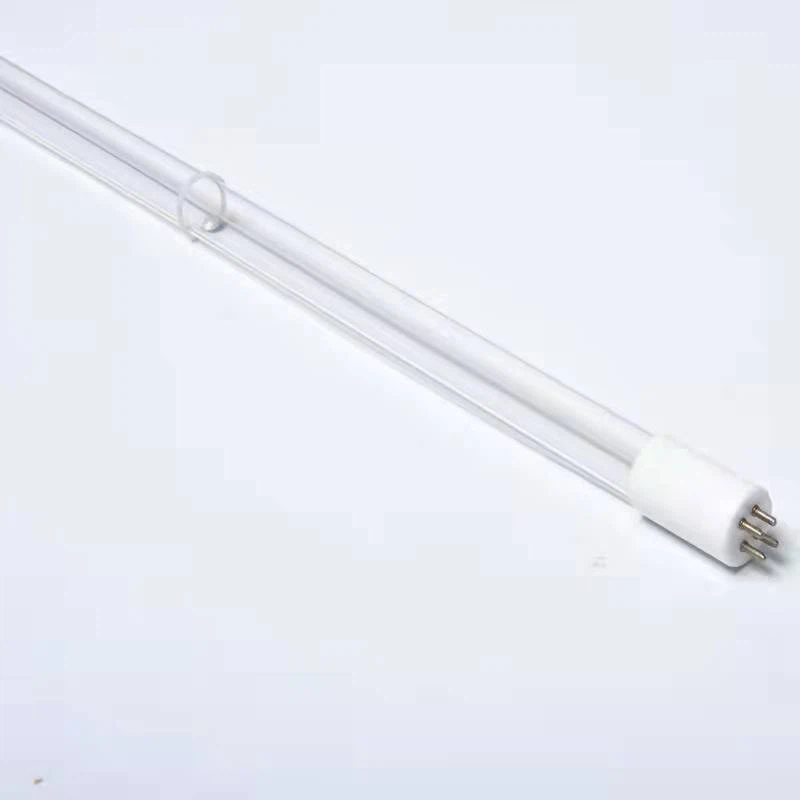

4 Pin UV Germicidal Lamp
GPHA357T5L High-power amalgam UV LAMP has a very high stability due to the use of German amalgam raw materials and advanced European coating production technique. Compared with the standard ultraviolet lamps, we increased the ultraviolet output efficiency by 2-3 times at the same length.
Description
Trido UV Amalgam lamps
Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection
Special amalgam used for highest efficiency over wide temperature range
Protective inside coating ensures constant UV output over the complete lifetime of the lamp
Philips electronic driver available for a perfect interface
Minimized amount of mercury
Universal burning position possible for the T6 range, depending on lamp type and sleeve dimensions
Tailor-made solutions possible
Lamp can be made from special quartz (open/synthetic) to maximize 185 nm Ozone generation
TUV 130W XPT SE 4 PIN 843mm AMALGAM
 | Model NO. | GPHHA843T6L |
Overall Length | 843MM | |
Watt | 320W | |
Diameter | 19MM | |
Ultraviolet intensity at 1 meter | 400uw/cm2 | |
| 43W | ||
Current | 1.8A | |
Liftime | 13000 hrs |
Type | Type | Power | Diameter | Length (BF-BF) | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GPHA357T5L | GPHA357T5VH | 42 | 15 | 357 | 1.2 | 36 | 110 | 13000 |
GPHA843T5L | GPHA843T5VH | 105 | 15 | 843 | 1.2 | 88 | 320 | 13000 |
GPHA1000T5L | GPHA1000T5VH | 127 | 15 | 1000 | 1.2 | 107 | 370 | 13000 |
GPHA1554T5L | GPHA1554T5VH | 190 | 15 | 1554 | 1.2 | 164 | 500 | 13000 |
GPHA357T6L | GPHA357T6VH | 57 | 19 | 357 | 1.8 | 32 | 130 | 13000 |
GPHA843T6L | GPHA843T6VH | 130 | 19 | 843 | 1.8 | 71 | 400 | 13000 |
GPHA1000T6L | GPHA1000T6VH | 150 | 19 | 1000 | 1.8 | 84 | 460 | 13000 |
GPHA1575T6L | GPHA1575T6VH | 240 | 19 | 1554 | 1.8 | 134 | 600 | 13000 |
GPHHA357T6L | GPHHA357T6VH | 65 | 19 | 357 | 2.1 | 32 | 140 | 13000 |
GPHHA843T6L | GPHHA843T6VH | 172 | 19 | 843 | 2.1 | 82 | 490 | 13000 |
GPHHA1000T6L | GPHHA1000T6VH | 207 | 19 | 1000 | 2.1 | 99 | 570 | 13000 |
GPHHA1554T6L | GPHHA1554T6VH | 320 | 19 | 1554 | 2.1 | 154 | 750 | 13000 |
GPHHA1510T8L | GPHHA1510T8VH | 250 | 25 | 1510 | 3.1 | 83 | 650 | 13000 |
GXA1500T10L | GXA1500T10VH | 270 | 32 | 1500 | 3.8 | 75 | 650 | 13000 |
GPHHA1310T10L | GPHHA1310T10VH | 400 | 32 | 1310 | 5.0 | 82 | 1050 | 13000 |
GPHHA1554T10L | GPHHA1554T10VH | 470 | 32 | 1554 | 5.0 | 95 | 1160 | 13000 |
GPHHA1554T10L | GPHHA1554T10VH | 500 | 32 | 1554 | 5.5 | 90 | 1300 | 13000 |
UV Amalgam lamp Benefits
Security of effective disinfection over the useful lifetime of the lamp
Extreme reliability of driver; with annual failure rate of less than 1%
Approximately 10% energy savings, because lamps can be dimmed to reach the same UV output compared to similar lamps on the market
High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
Best environmental choice because of long reliable life, less waste and industry leading low amount of mercury
High efficiency during dimming thanks to unique amalgam temperature control of the 800W lamps
