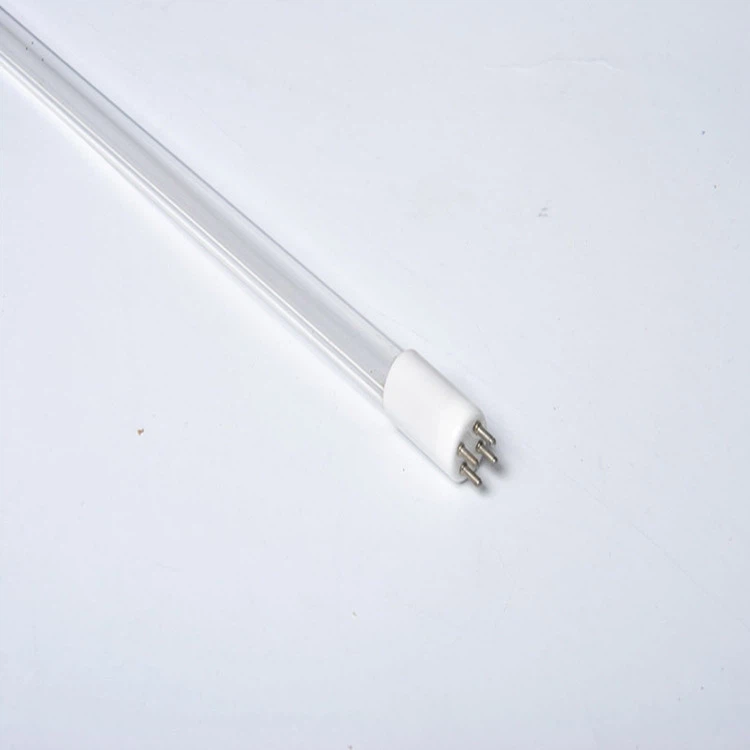

23W T5 463mm Rechargeable Quartz Sterilization UV Lamp
Ultraviolet technology is a non-chemical approach to disinfection. In this method of disinfection, nothing is added which makes this process simple, inexpensive and requires very low maintenance.
Description
What are the beneficial uses of germicidal ultraviolet?

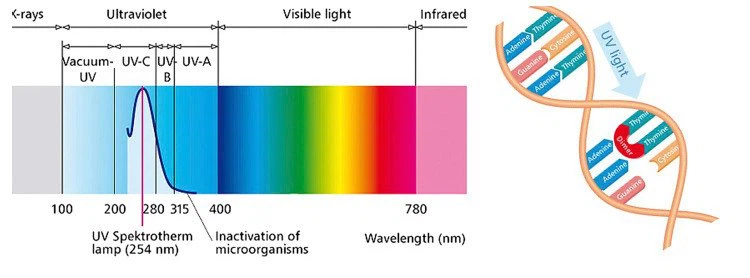

Ultraviolet technology is a non-chemical approach to disinfection. In this method of disinfection, nothing is added which makes this process simple, inexpensive and requires very low maintenance. Ultraviolet purifiers utilize germicidal lamps that are designed and calculated to produce a certain dosage of ultraviolet (usually at least 16,000 microwatt seconds per square centimeter but many units actually have a much higher dosage.) The principle of design is based on a product of time and intensity – you must have a certain amount of both for a successful design.
GPH463T5L/4 4 Pin | ||
| Model NO. | GPH463T5L |
Overall Length | 463MM | |
Watt | 23W | |
Diameter | 15MM | |
Ultraviolet intensity at 1 meter | 80uw/cm2 | |
8W | ||
Current | 425mA | |
Liftime | 9000 hrs | |
This lamp is an equivalent replacement lamp for the following:
Brand | Model |
Aqua Sun International | BBUV1, WHUV |
Aqua Treatment Services | ATS4-436 |
Austin Springs | AS-UV-R, AS-WELL |
Cole-Parmer Instrument Co. | 99280-00, 99280-05, 99280-10, 99280-15, EW-99280-050 |
Emperor Aquatics | 20025, 25 Watt Smart UV, FL-2542-IP |
Evoqua Water Technologies | W2T850795 |
Ideal Horizons | 42022 |
O-So Pure, Inc. | DWS-POE, DWS-UV9BB, The Pathogen Predator |
Pentair | FL-2542-IP |
Pentek, Inc. | 163512, UV-120, UVBB, UVBB-120 |
Pura Water | 102, 15820121, 15820221, 15820421, 15820521, 15820622, 15830131, 15830231, 15830331, 15830431, 15830531, 15830631, 163512, 20-463, 210-200, 220-290, 36002018, 8750, 8753, 89500, UV012, UV013, UV20, UV20-2, UV20BB, UV22, UV36002018, UV Addon 3, UVBB-1, UV-BB-1, UVBB-2, UV-BB-2, UVBB-3, UV-BB-3, UVBB-3 SED/CB20XBB, UVBB-R1, UVBB-R2, UVBB-R4, UVSS-6, UVSS-6M |
Rainsoft Water Treatment | SV-10 |
Safe Water Technologies | BA-7, BA-7P, BA-7U, BA-7UP, DI-LMPUVR04, DI-LMPUVR07, UVR04, UVR04-T, UVR07, UVR07-T, UVR07U, UVR07U-T |
Trojan UV | 605, 650143, UV 605, UV 675 |
UV Superstore | GL463/4 |
Water Treatment & Accessories | 05-0346-1, 05-0346-R |

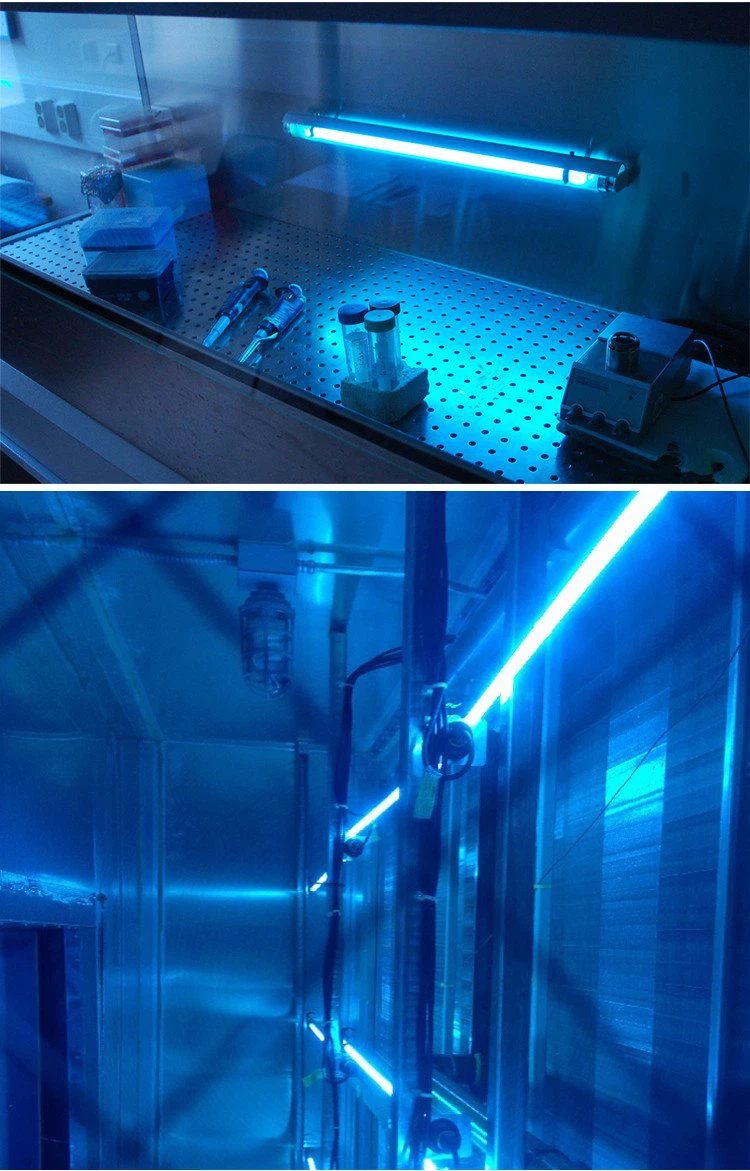

UV Germicidal Lamp Installation
Once you purchase the UV germicidal lamp, you will find a central place where you will install it.
Make sure you install it at a central place where the wavelength of the lamp can spread and cover the whole room.
Additionally, you should have a constant source of power that can supply electric current through the UV germicidal lamp.
