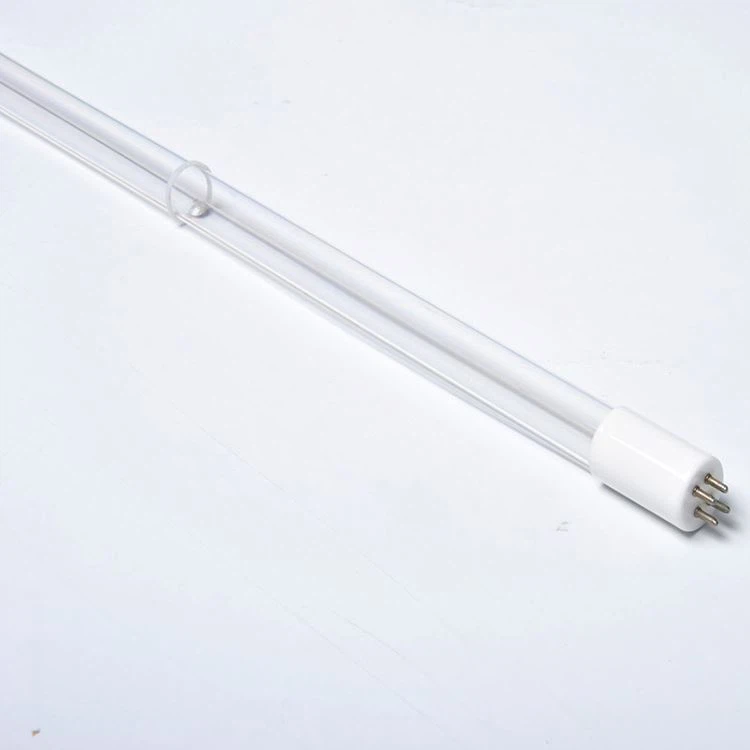

130W Amalgam Lamp Water Treatment

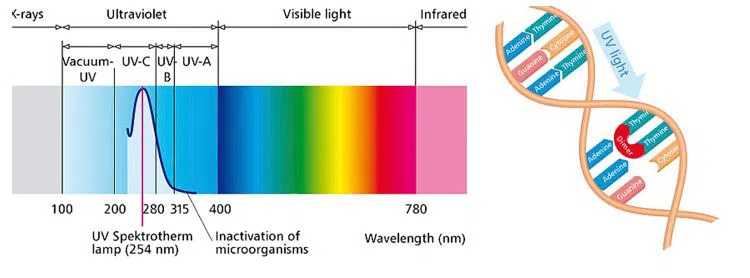

● Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection
● Special amalgam used for highest efficiency over wide temperature range
● Protective inside coating ensures constant UV output over the complete lifetime of the lamp
Description
Trido UV Amalgam lamps
● Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection
● Special amalgam used for highest efficiency over wide temperature range
● Protective inside coating ensures constant UV output over the complete lifetime of the lamp
● Philips electronic driver available for a perfect interface
● Minimized amount of mercury
● Universal burning position possible for the T6 range, depending on lamp type and sleeve dimensions
● Tailor-made solutions possible
● Lamp can be made from special quartz (open/synthetic) to maximize 185 nm Ozone generation
TUV 130W XPT SE 4 PIN 843mm AMALGAM | ||
| Model NO. | GPHHA843T6L |
Overall Length | 843MM | |
Watt | 130W | |
Diameter | 19MM | |
Ultraviolet intensity at 1 meter | 400uw/cm2 | |
| 43W | ||
Current | 1.8A | |
Liftime | 13000 hrs | |
Type | Type | Power | Diameter | Length （BF-BF) | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GPHA357T5L | GPHA357T5VH | 42 | 15 | 357 | 1.2 | 36 | 110 | 13000 |
GPHA843T5L | GPHA843T5VH | 105 | 15 | 843 | 1.2 | 88 | 320 | 13000 |
GPHA1000T5L | GPHA1000T5VH | 127 | 15 | 1000 | 1.2 | 107 | 370 | 13000 |
GPHA1554T5L | GPHA1554T5VH | 190 | 15 | 1554 | 1.2 | 164 | 500 | 13000 |
GPHA357T6L | GPHA357T6VH | 57 | 19 | 357 | 1.8 | 32 | 130 | 13000 |
GPHA843T6L | GPHA843T6VH | 130 | 19 | 843 | 1.8 | 71 | 400 | 13000 |
GPHA1000T6L | GPHA1000T6VH | 150 | 19 | 1000 | 1.8 | 84 | 460 | 13000 |
GPHA1554T6L | GPHA1554T6VH | 240 | 19 | 1554 | 1.8 | 134 | 600 | 13000 |
GPHHA357T6L | GPHHA357T6VH | 65 | 19 | 357 | 2.1 | 32 | 140 | 13000 |
GPHHA843T6L | GPHHA843T6VH | 172 | 19 | 843 | 2.1 | 82 | 490 | 13000 |
GPHHA1000T6L | GPHHA1000T6VH | 207 | 19 | 1000 | 2.1 | 99 | 570 | 13000 |
GPHHA1554T6L | GPHHA1554T6VH | 320 | 19 | 1554 | 2.1 | 154 | 750 | 13000 |
GPHHA1510T8L | GPHHA1510T8VH | 250 | 25 | 1510 | 3.1 | 83 | 650 | 13000 |
GXA1500T10L | GXA1500T10VH | 270 | 32 | 1500 | 3.8 | 75 | 650 | 13000 |
GPHHA1310T10L | GPHHA1310T10VH | 400 | 32 | 1310 | 5.0 | 82 | 1050 | 13000 |
GPHHA1554T10L | GPHHA1554T10VH | 470 | 32 | 1554 | 5.0 | 95 | 1160 | 13000 |
GPHHA1554T10L | GPHHA1554T10VH | 500 | 32 | 1554 | 5.5 | 90 | 1300 | 13000 |
UV Amalgam lamp Benefits
● Security of effective disinfection over the useful lifetime of the lamp
● Extreme reliability of driver; with annual failure rate of less than 1%
● ● Approximately 10% energy savings, because lamps can be dimmed to reach the same UV output compared to similar lamps on the market
High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
● Best environmental choice because of long reliable life, less waste and industry leading low amount of mercury
● High efficiency during dimming thanks to unique amalgam temperature control of the 800W lamps
