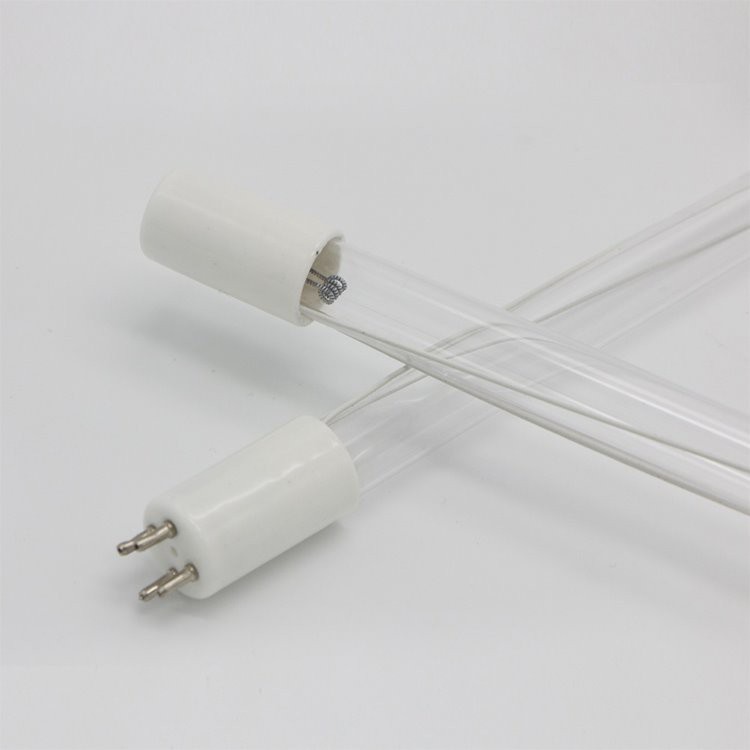

8W UV Lamp Household Air UV Sterilizing Lamp
The UVC lamp is made by quartz tube which can penetrate the ultraviolet wavelength 254nm,ultraviolet wave 185nm produces ozone which be dissolved in water to destroy the walls of the cells of microorganism ,and thereby kill them immediately.
Description
8W UV Lamp Household Air UV Sterilizing Lamp features:
1.Four-Pin, single ended UV germicidal lamps.
2.Made of high quality quartz.
3.Average lamp life is 10,000 hours.
4.Ozone-free lamps (254nm) and ozone-generating lamps (185nm) are for choice.
5.Quartz sleeves and ballasts are available.
8W UV Lamp Household Air UV Sterilizing Lamp 4-pins | ||
| Model NO. | GPH150T5L |
Overall Length | 150MM | |
Watt | 8W | |
Diameter | 15MM | |
Ultraviolet intensity at 1 meter | 20uw/cm2 | |
| 2W | ||
Current | 425mA | |
Liftime | 9000 hrs |
Type | Type | Power | Diameter | Length （BF-BF) | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GPH118T5L | GPH118T5VH | 6 | 15 | 118 | 425 | 25 | 13 | 9000 |
GPH150T5L | GPH150T5VH | 8 | 15 | 150 | 425 | 27 | 20 | 9000 |
GPH212T5L | GPH212T5VH | 10 | 15 | 212 | 425 | 30 | 26 | 9000 |
GPH287T5L | GPH287T5VH | 14 | 15 | 287 | 425 | 41 | 40 | 9000 |
GPH303T5L | GPH303T5VH | 15 | 15 | 303 | 425 | 43 | 43 | 9000 |
GPH357T5L | GPH357T5VH | 17 | 15 | 357 | 425 | 51 | 57 | 9000 |
GPH406T5L | GPH436T5VH | 21 | 15 | 436 | 425 | 62 | 72 | 9000 |
GPH550T5L | GPH550T5VH | 28 | 15 | 550 | 425 | 69 | 85 | 9000 |
GPH793T5L | GPH793T5VH | 37 | 15 | 793 | 425 | 112 | 120 | 9000 |
GPH843T5L | GPH843T5VH | 40 | 15 | 843 | 425 | 120 | 135 | 9000 |
GPH1148T5L | GPH1148T5VH | 55 | 15 | 1148 | 425 | 165 | 170 | 9000 |
GPH1554T5L | GPH1554T5VH | 75 | 15 | 1554 | 425 | 220 | 220 | 9000 |
GPH1630T5L | GPH1630T5VH | 79 | 15 | 1630 | 425 | 231 | 228 | 9000 |
High Output
Type | Type | Power | Diameter | Length （BF-BF) | Current | Voltage | UVC Output | Life time |
Ozone Free | Ozone | W | mm | mm | A | V | μw/cm² | H |
GPH212T5L/HO | GPH212T5VH/HO | 18 | 15 | 212 | 800 | 23 | 50 | 9000 |
GPH287T5L/HO | GPH287T5VH/HO | 27 | 15 | 287 | 800 | 34 | 75 | 9000 |
GPH357T5L/HO | GPH357T5VH/HO | 32 | 15 | 357 | 800 | 40 | 95 | 9000 |
GPH436T5L/HO | GPH436T5VH/HO | 48 | 15 | 436 | 800 | 70 | 120 | 9000 |
GPH793T5L/HO | GPH793T5VH/HO | 72 | 15 | 793 | 800 | 90 | 210 | 9000 |
GHO36T5L | GHO36T5VH | 80 | 15 | 843 | 800 | 127 | 260 | 9000 |
GPH893T5L/HO | GPH893T5VH/HO | 90 | 15 | 893 | 800 | 135 | 270 | 9000 |
GHO64T5L | GHO64T5VH | 150 | 15 | 1554 | 800 | 220 | 400 | 9000 |
GPH846T6L/HO | GPS846T6VH/HO | 80 | 19 | 843 | 1000 | 130 | 280 | 9000 |
GPH1148T6L/HO | GPH1148T6VH/HO | 120 | 19 | 1148 | 1000 | 185 | 340 | 9000 |
GPH1554T6L/HO | GPH1554T6VH/HO | 150 | 19 | 1554 | 1000 | 230 | 400 | 9000 |
What is ultraviolet?
Ultraviolet light is part of the light spectrum, which is classified into three wavelength ranges:
· UV-C, from 100 nanometers (nm) to 280 nm
· UV-B, from 280 nm to 315 nm
· UV-A, from 315 nm to 400 nm
